• Country
• Spain

• Manufacturer / Brand
• Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

• Year
• 1965 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 141420

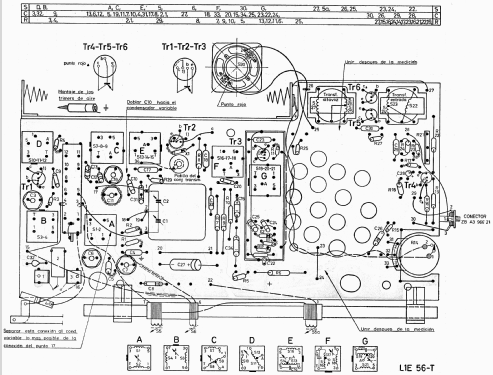

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF115 AF115 AF115 AC126 AC128 AC128 OA79

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm

• Power out
• 0.4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: L1E56T / 00G /00X /00K - Philips Ibérica, COPRESA,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 175 x 111 x 43 mm / 6.9 x 4.4 x 1.7 inch

• Notes

• Variaciones indican color de la caja siendo:
  /00G = Gris (grey).
  /00X = Azul (blue).
  /00K = Gris oscuro (dark grey).

  AM (Broadcasting band): 187...572 m;
  OC1 (Short Wave 1): 41,1...100 m.
  OC2 (Short Wave 2): 13,6...31,6 m.

• Source of data
• - - Manufacturers Literature

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Francisco Javier Urroz-Fernández. See "Data change" for further contributors.

• Other Models

• Here you find 630 models, 524 with images and 469 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona
