• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82537

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF127 AF127 AF127 AC132 AC132 AC132 OA70

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Power out
• 0.12 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

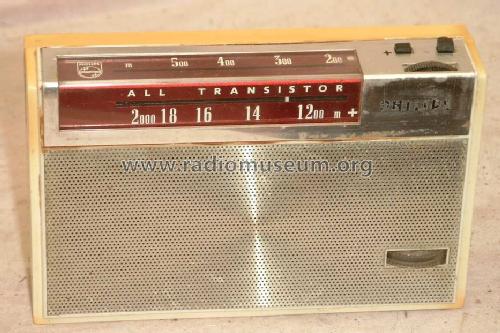

• Model: L1W30T /12D /12G /12R /12X - Philips Belgium Belgien

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 140 x 90 x 40 mm / 5.5 x 3.5 x 1.6 inch

• Notes
• 4 Ausführungen: ../12D, ../12G, ../12R, ../12X.

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Literature/Schematics (1)
• -- Original-techn. papers. (Selecções de Rádio, nr. 60)

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.

• Other Models

• Here you find 592 models, 568 with images and 342 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
