• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 104297

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• 2N219 2N218 2N218 OC71 OC71 OC72 OC72

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Fanette L1X75T /82 - Philips; Eindhoven tubes

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

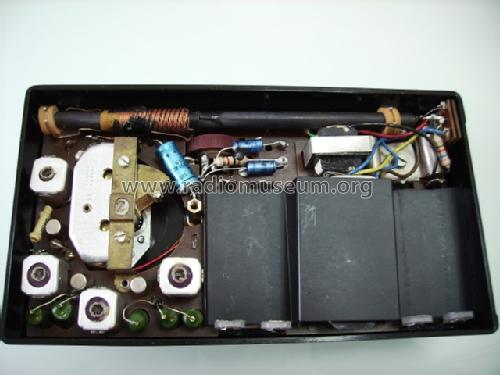

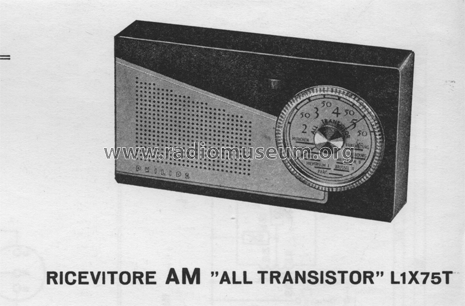

• Philips L1X75T/82, an early "All Transistor" model of this manufacturer. See also model Fanette L1X75T/81 with different rf transistors OC44 and OC45.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Rino Ferro † 2008. See "Data change" for further contributors.

• Other Models

• Here you find 5260 models, 4404 with images and 3455 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
