- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 181051
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 3 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.12 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: L2X10T /15R - Philips; Eindhoven tubes
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 206 x 105 x 44 mm / 8.1 x 4.1 x 1.7 inch
- Notes
- This model is battery operated and used 4 X 1.5v AA batteries, it also has an external power socket on the left hand side of the radio along with a headphone socket and volume control. There is a switch on the top left hand for high or low tone and on the top right is the on/off and wave band switches. The tuner control is on the right hand side of the radio.
- Net weight (2.2 lb = 1 kg)
- 0.979 kg / 2 lb 2.5 oz (2.156 lb)

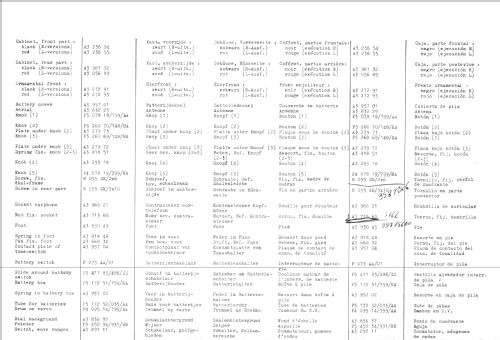

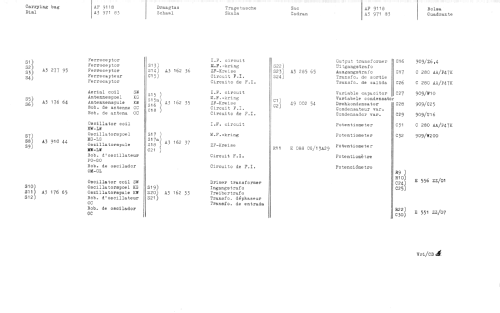

- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Ron Kendall. See "Data change" for further contributors.
