• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 341814

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• AF114 AF115 AF116 AF116 AF116 OC75 OC74 OC74 OA90 OA79 OA79 OA79

• Main principle
• Superheterodyne (common); ZF/IF 452/6750 kHz; 2 AF stage(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.1 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

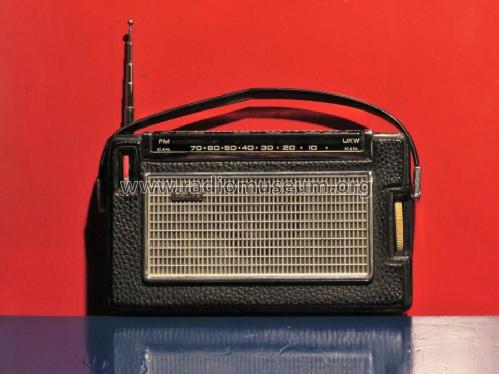

• Model: L2X28T /03 - Philips Radios - Deutschland

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 171 x 98 x 43 mm / 6.7 x 3.9 x 1.7 inch

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.
