L2X94T /01R /01D

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 108254

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

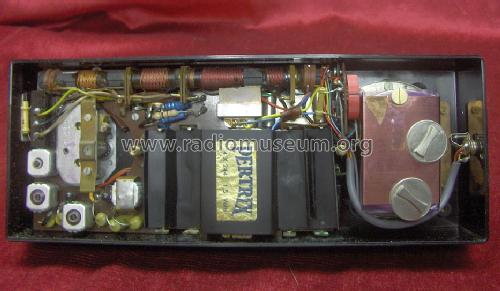

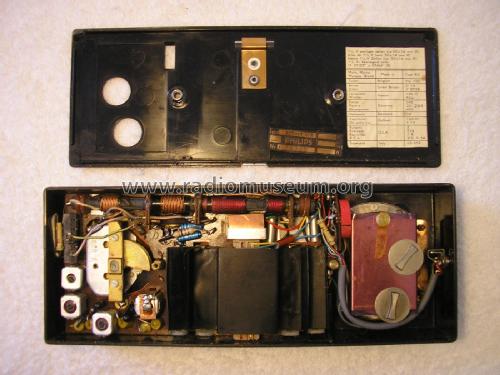

• Number of Transistors
• 7

• Semiconductors
• OC44 OC45 OC45 OC71 OC71 OC72 OC72 OA95 OA95

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch

• Power out
• 0.1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: L2X94T /01R /01D - Philips; Eindhoven tubes

• Shape

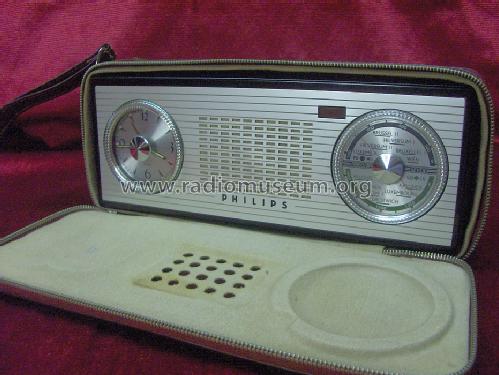

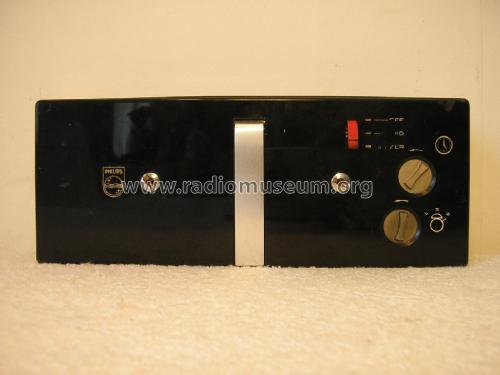

• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 232 x 88 x 37 mm / 9.1 x 3.5 x 1.5 inch

• Notes
• AM radio with built-in electric clock.
  Loudspeaker: AD2216Z.
  Similar to Radiola 279T.
