- Country
- Argentina
- Manufacturer / Brand
- Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires
- Year
- 1962
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 166870
Prospekt

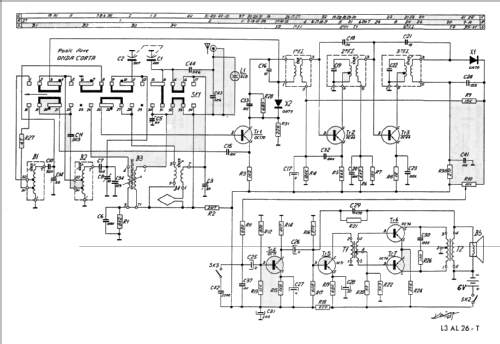

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz; 3 AF stage(s)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 0.5 W (unknown quality)
- from Radiomuseum.org
- Model: L3AL26-T - Philips Argentina, FAPESA,
- Notes
- Rango de frecuencias OM 517 a 1622 Khz. OC 5,9 a 18,1 Mhz. Consumo 30 a 100 mA.
- Literature/Schematics (1)
- Manual de servicio Philips 1966
- Author
- Model page created by Jose Vigil. See "Data change" for further contributors.
