• Country
• Spain

• Manufacturer / Brand
• Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 156206

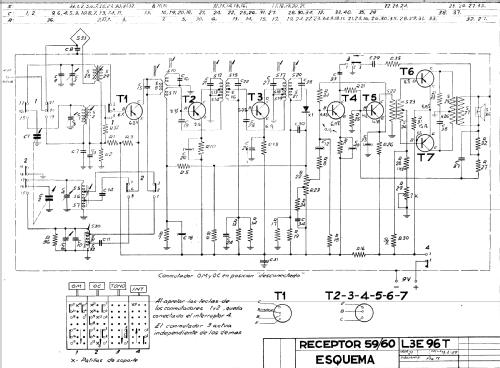

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors

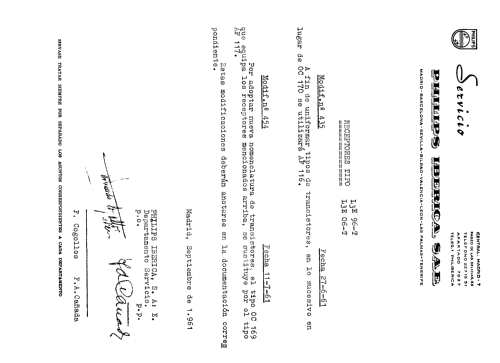

• OC170 or. AF116 OC45 or. OC169 or. AF117 OC45 or. OC169 or. AF117 OC71 OC71 OC72 or. OC74 OC72 or. OC74 OA79

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 3 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

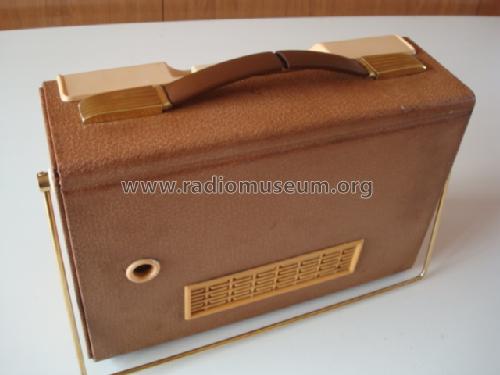

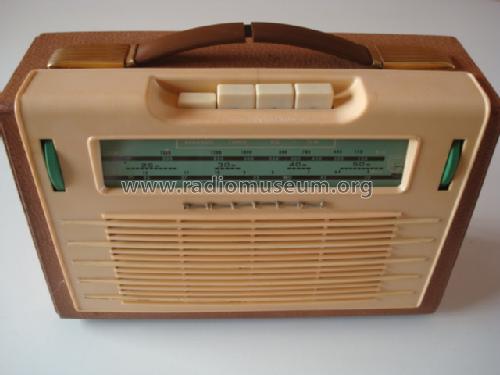

• Model: L3E96T - Philips Ibérica, COPRESA,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 268 x 177 x 90 mm / 10.6 x 7 x 3.5 inch

• Notes

•  Mismo chasis que el modelo L 3 E 06 T

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

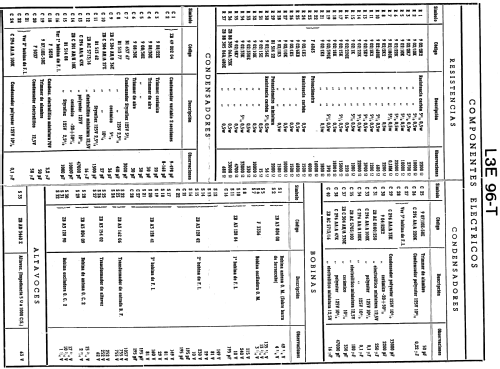

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Abel Cubas Torres. See "Data change" for further contributors.
