• Country
• Great Britain (UK)

• Manufacturer / Brand
• Philips Electrical, Lamps, Industrial - Miniwatt; London

• Year
• 1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 180508

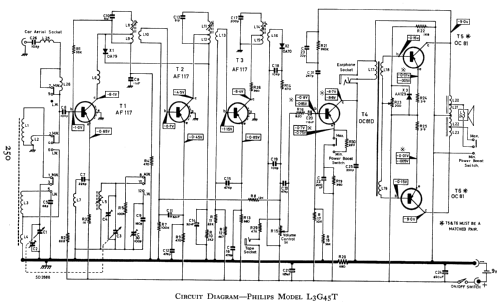

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF117 AF117 AF117 OC81D OC81 OC81

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1 W (unknown quality)

• from Radiomuseum.org

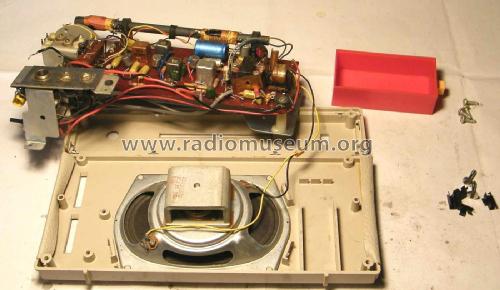

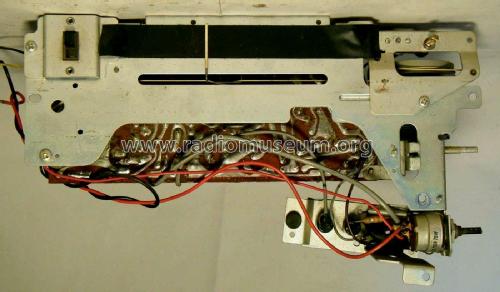

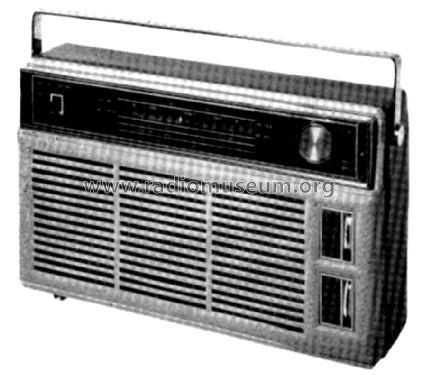

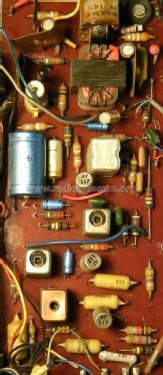

• Model: L3G45T - Philips Electrical, Lamps,

• Dimensions (WHD)
• 11.5 x 7.25 x 3.5 inch / 292 x 184 x 89 mm

• Notes
• Sockets for car earial, tape, & earphone. Battery type PP9. Speaker 6x4 inches.

• Net weight (2.2 lb = 1 kg)
• 5.5 lb (5 lb 8 oz) / 2.497 kg

• Source of data
• -- Schematic

• Literature/Schematics (1)
• Radio And Television Servicing books (R&TVS)

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
