• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 183670

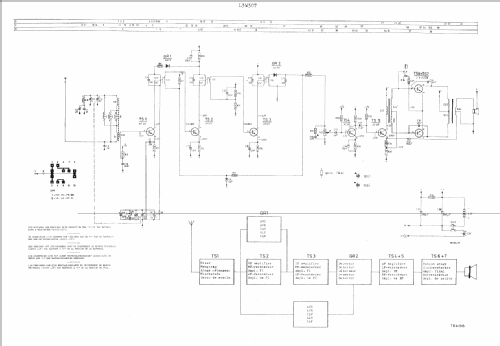

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• AF127 AF127 AF127 AC125 AC125 AC128 AC128 AA119 AA119

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 3 x 1,5 & 1 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.25 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: L3W30T /09C - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 254 x 142 x 65 mm / 10 x 5.6 x 2.6 inch

• Notes

• Ranges:

  MW 524 to 1604 kHz; LW 158 to 250 kHz.

  Colour scheme for the cabinet:

  • /xxC: white
  • /xxS: blue
  • /xxW: grey.

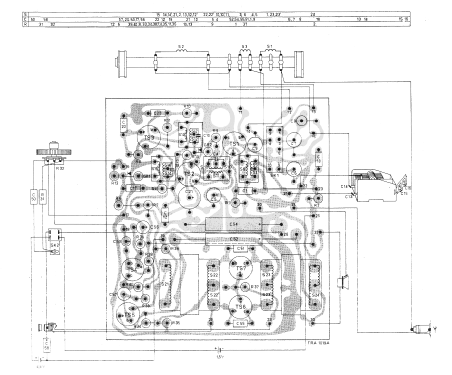

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
