• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30174

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• OC171V OC171M OC170 OC170 OC75 OC75 OC74 OC74 OA90 OA79 OA79 OA79

• Main principle
• Superheterodyne (common); ZF/IF 460/6750 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 6 x 1,5 or 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

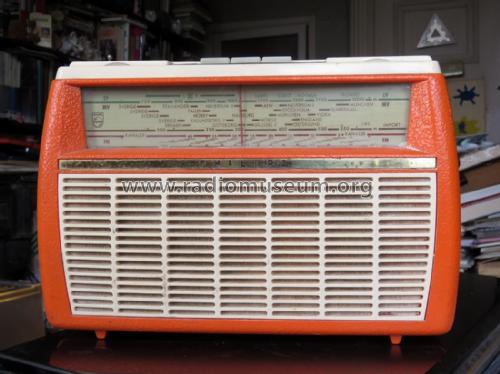

• Model: L3X02T /00F /00G /00W - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 268 x 180 x 100 mm / 10.6 x 7.1 x 3.9 inch

• Notes

• Wave bands:

  • MW: 517 - 1612 kHz
  • LW: 150 - 405 kHz
  • FM: 87.5 - 100 MHz.

  This model is available in three colours as versions /00G, /00F and /00W.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.

• Other Models

• Here you find 5251 models, 4395 with images and 3451 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
