- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1960/1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 30175
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / 2x 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

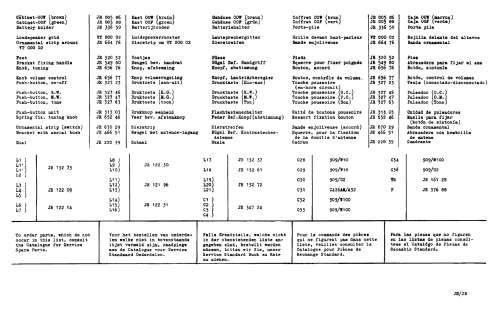

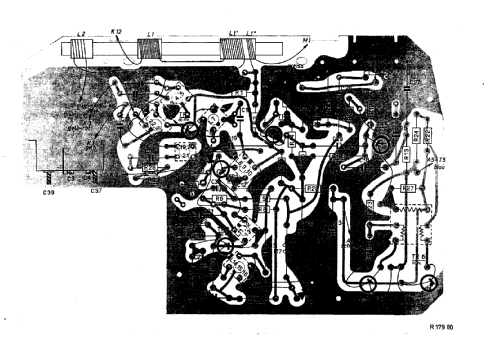

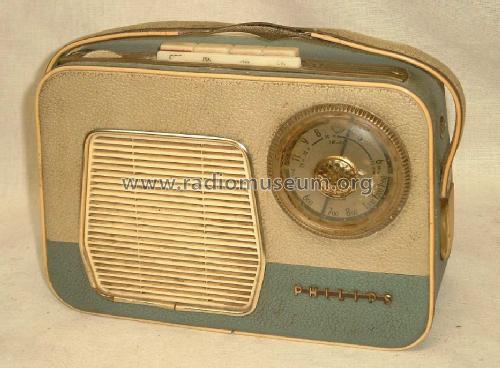

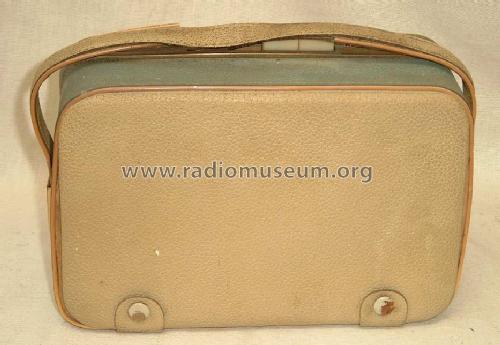

- Model: L3X03T /00W - Philips; Eindhoven tubes
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 235 x 165 x 80 mm / 9.3 x 6.5 x 3.1 inch
- Notes
-
Wave ranges: MW 185 - 580 m (1620 - 510 kHz), SW 25 - 49 m (12 - 6 MHz).
According to the service manual, the cabinet color of model L3X03T /00W is brown, and L3X03T /00F is green.
Currently, the only reference we have of an actual model shows a type L3X03T /00W with a green cabinet. There is also a blue model known.
