- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1964 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 127790
- Number of Transistors
- 9
- Semiconductors
- AF124 AF125 AF126 AF126 AF126 AC125 AC125 AC128 AC128 BA102 AA119 AA119 AA119 AA119 BA114 BA114
- Main principle
- Superheterodyne (common); ZF/IF 452/10700 kHz
- Tuned circuits
- 5 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Dry Batteries / 4 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 0.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

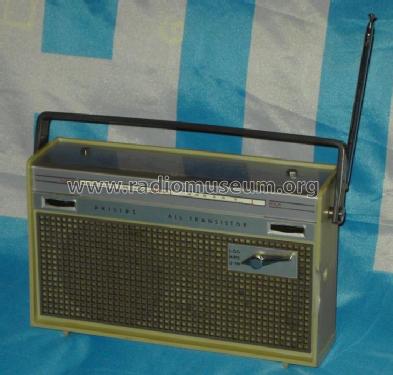

- Model: L3X32T /02G - Philips; Eindhoven tubes
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 250 x 155 x 70 mm / 9.8 x 6.1 x 2.8 inch
- Notes
-
Ferrit-Antenne: 200 mm rund 10 mm;
Lautsprecherbeschriftung: AD3415 RX 47-64AH (47. Woche 1964);
Teleskop-Antenne: 74 cm, 5 Glieder, sehr empfindlich!
Anschlüsse für Autoantenne und Kopfhörer.
- Net weight (2.2 lb = 1 kg)
- 1.5 kg / 3 lb 4.9 oz (3.304 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Alfred Przybilla. See "Data change" for further contributors.
