• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 347962

• Number of Transistors
• 7

• Semiconductors
• 2N219 2N218 2N218 OC71 OC71 OC72 OC72

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / D: 6 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: L3X72T /84 - Philips Belgium Belgien

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 265 x 175 x 85 mm / 10.4 x 6.9 x 3.3 inch

• Notes

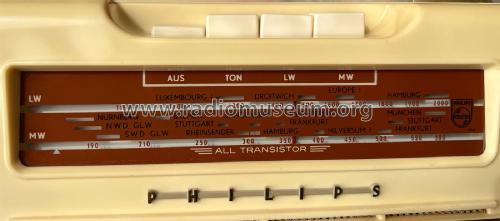

• Skala für Deutschland. Lautsprecher AD 3460 Z.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
