• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30206

Click on the schematic thumbnail to request the schematic as a free document.

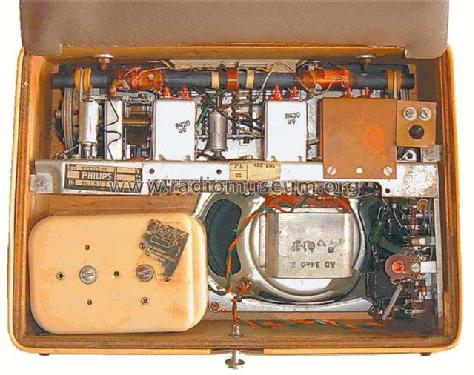

• Number of Transistors
• 7

• Semiconductors
• OC44 or. 2N219 or. 2N411 or. 2N412 OC45 or. 2N218 or. 2N410 OC45 or. 2N218 or. 2N410 OC71 OC71 OC72 OC72 OA79

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 3 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

• Power out
• 0.3 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

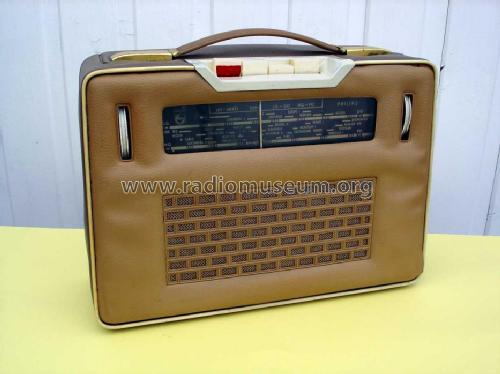

• Model: L3X81T /00 /90 - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 260 x 175 x 92 mm / 10.2 x 6.9 x 3.6 inch

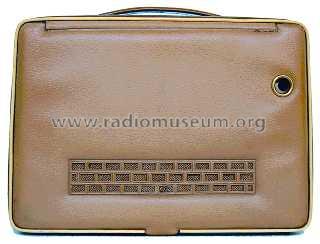

• Notes

• Philips L3X81T /00 /90 hat an der Rückseite einen Anschluss für eine Auto-Antenne.

• Net weight (2.2 lb = 1 kg)
• 3.2 kg / 7 lb 0.8 oz (7.048 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
