• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 315512

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• DK96 DF96 DF96

• Number of Transistors
• 3

• Semiconductors
• OC71 OC72 OC72 OA85

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Dry Batteries / 8 x 1.5 & 45 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.3 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

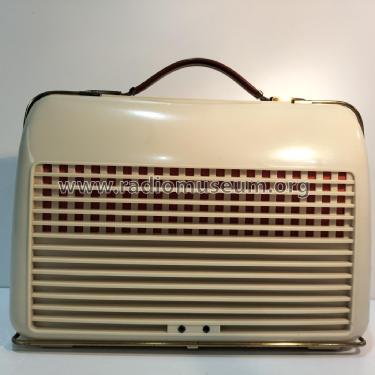

• Model: L4X66BT - Philips Belgium Belgien

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 344 x 235 x 140 mm / 13.5 x 9.3 x 5.5 inch

• Notes

• Loudspeaker AD3460Z, 15 x 10 cm.

  Wave ranges:

  • MW = 186 - 580 m
  • SW1 = 50 - 130 m
  • SW2 = 24,8 - 50,8 m
  • SW3 = 13,5 - 24,8 m.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.
