• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 214113

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• DK96 DF96 DF96

• Number of Transistors
• 3

• Semiconductors
• OC71 OC72 OC72

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Dry Batteries / 6 & 45 or 67,5V Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

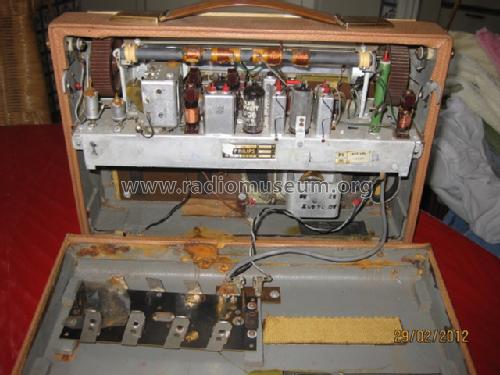

• Model: L4X70BT - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 345 x 240 x 140 mm / 13.6 x 9.4 x 5.5 inch

• Notes
• Chassis identisch mit Philips L4X60BT.

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Rein Tiezema † 27.3.16. See "Data change" for further contributors.
