• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1965 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 254615

• • Brand: Deutsche Philips-Ges.

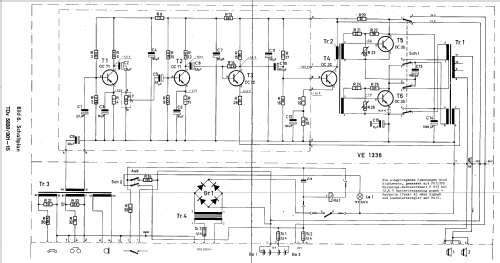

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• OC71 OC71 OC72 OC30 OC35 OC35

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12; 24 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 15 W (max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: Lautsprechanlage, 15 Watt VE 1815 - Philips Radios - Deutschland

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Dimensions (WHD)
• 380 x 400 x 240 mm / 15 x 15.7 x 9.4 inch

• Notes

• Tragbarer Verstärker (Tornistergerät), Eingänge für Mikrofon, Tonband, Telefonleitung. Ausgangsbuchsen für 2 Lautsprecher, 5 Ohm.

  Betrieb mit Eigenbatterie 12 V oder Fremdbatterie 24 V. Ladegerät für Eigenbatterie eingebaut.

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Mentioned in
• -- Original-techn. papers. (TDv 5830/001-15 Lautsprechanlage, 15 Watt)

• Author
• Model page created by Siegfried Droese. See "Data change" for further contributors.
