- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1970 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 306099
Frontansicht
Rückansicht
Rückansicht Typenschild und Anschlussbuchsen

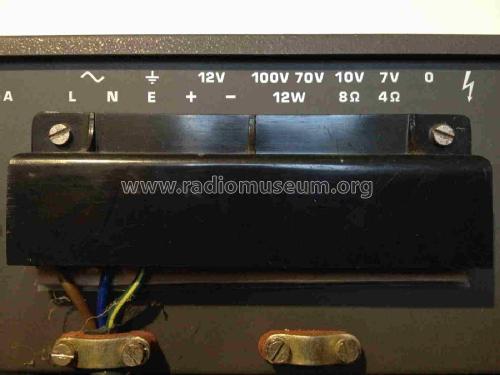

Rückansicht Anschlüsse
Printansicht

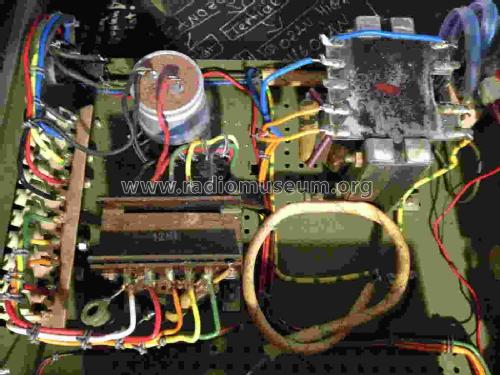

Netz- und Ausgangstrafo
- Number of Transistors
- 15
- Semiconductors
- BD201 BD201 BC549 BC549 BC549 BC549 BC549 BC549 BC549 BC549 BC549 unknown_tr unknown_tr unknown_tr unknown_tr
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Line plus power jack, mostly with battery or storage battery / AC 110-240 / DC 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: LBD8122 /12 - Philips; Eindhoven tubes
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 325 x 90 x 240 mm / 12.8 x 3.5 x 9.4 inch
- Notes
-
Volltransistorisierter PA-Verstärker. Ausgänge: 100 / 70 V, 12 W - 10 V, 8 Ohm - 7 V, 4 Ohm.
- Author
- Model page created by Harald Kunze. See "Data change" for further contributors.
