• Country
• Denmark

• Manufacturer / Brand
• Philips Radio A/S; København

• Year
• 1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 286123

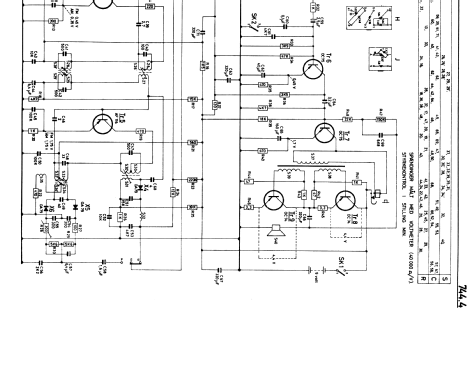

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• AF114 AF115 AF116 AF116 OC75 OC75 OC74 OC74 OA79 OA79 OA79 OA79

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: LDK316T - Philips Radio A/S; København

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 185 x 100 mm / 11 x 7.3 x 3.9 inch

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
