• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1966/1967

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 112787

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• PC900 PCF801 EF183 EF184 PCL84 PCL86 PCH200 PCL85 PCF802 PL500 PY88 DY86 A59-11W

• Number of Transistors
• 5

• Semiconductors
• AF139 AF139 AF121 AF121 AF126 AA119 BA100 BY100 OA81 OA85

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

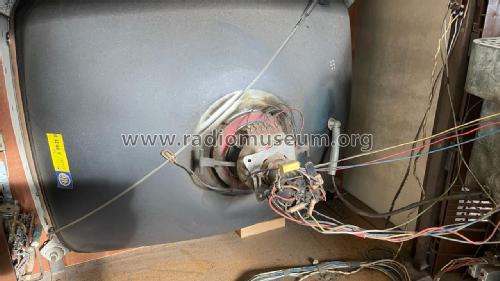

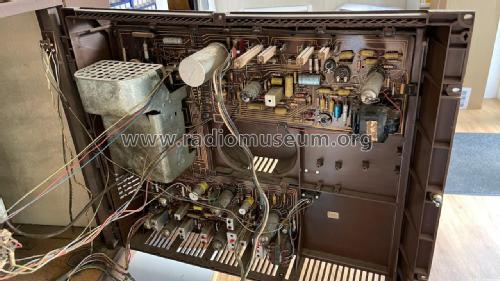

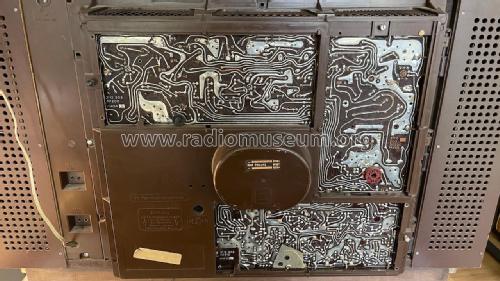

• Model: Leonardo 23TD511A /00 /06 Ch= D5F - Philips Radios - Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 680 x 490 x 430 mm / 26.8 x 19.3 x 16.9 inch

• Notes

• Ausführungen: -00 dunkel, -06 hell
  - UHF Kanalwähler mit Transistoren, Typ A3 687 70 (AT 6380) HA 362 58
  - VHF Kanalwähler mit Röhren, Typ 3122 108 54070 (NT 5703)
  - UHF Kanalwähler mit Drucktastenbedienung
  - Fernbedienung Typ 67 NT1174

• Net weight (2.2 lb = 1 kg)
• 26 kg / 57 lb 4.3 oz (57.269 lb)

• Source of data
• Handbuch VDRG 1966/1967

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
