• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1961/1962

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 105574

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

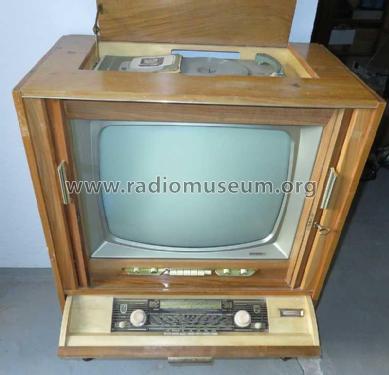

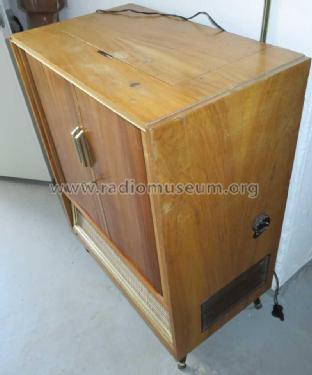

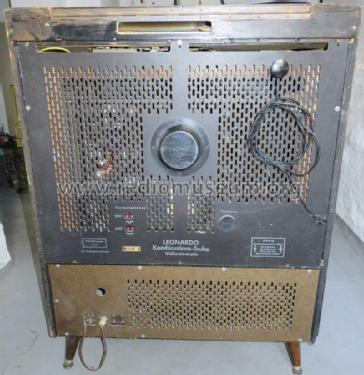

• Model: Leonardo Kombinations-Truhe 23RD312A - Philips Radios - Deutschland

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 750 x 960 x 450 mm / 29.5 x 37.8 x 17.7 inch

• Notes
• Fernseh-Chassis = Leonardo 23TD310A;
  Rundfunk-Chassis = Hochleistungssuper mit 8 Röhren, 6/10 Kreise, LMKU, Stereo-NF-Verstärker;
  Phono-Chassis = NG1264.

• Net weight (2.2 lb = 1 kg)
• 62 kg / 136 lb 9 oz (136.564 lb)

• Price in first year of sale
• 1,748.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
