Leonardo L Truhe 21CD152A /05
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1957
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 273979
-
- Brand: Deutsche Philips-Ges.
Picture from Philips manual
Q: Philips, Service-Unterlagen 2.58
Q: Philips, Service-Unterlagen 2.58
Q: Philips, Service-Unterlagen 2.58

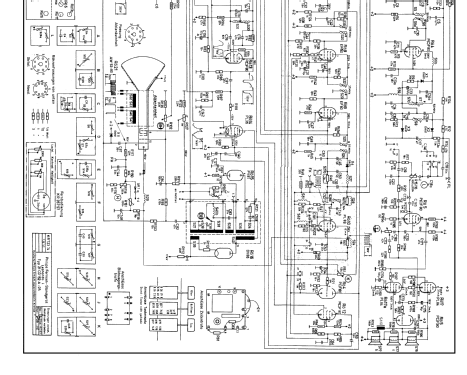

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- PCC88 PCF80 EF80 EF80 EF80 EF80 PL83 PCF80 PCF80 PCF80 PL84 PL84 ECH81 PCL82 PCF80 PCF80 PL36 PY81 DY86 UY82 UY82 AW53-80
- Number of Transistors
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Leonardo L Truhe 21CD152A /05 - Philips Radios - Deutschland
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 650 x 860 x 560 mm / 25.6 x 33.9 x 22 inch
- Notes
- Net weight (2.2 lb = 1 kg)
- 55 kg / 121 lb 2.3 oz (121.145 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
