• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1957/1958

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 99729

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• PCC88 PCF80 EF80 EF80 EF80 EF80 PL83 PCF80 PCF80 PCF80 PL84 PL84 ECH81 PCL82 PCF80 PCF80 PL36 PY81 DY86 UY82 UY82 AW53-80

• Number of Transistors

• Semiconductors
• OA70 OA81

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

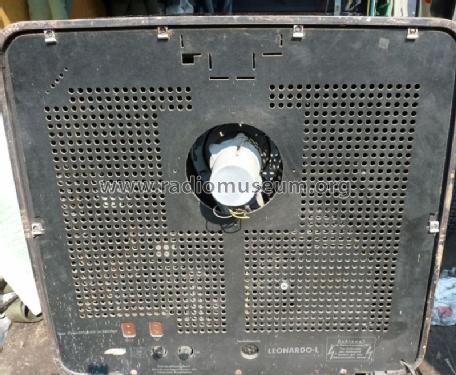

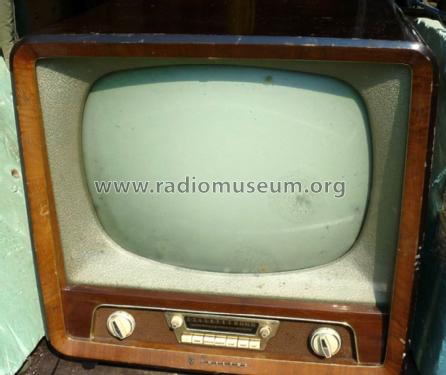

• Model: Leonardo L 21TD144A - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 630 x 620 x 495 mm / 24.8 x 24.4 x 19.5 inch

• Notes

• 53 cm Fernseh-Tischempfänger mit 90° Bildröhre. Nur VHF mit 10 Kanälen im VHF-Band I und III. Kanalwähler Typ A3 768 24.

  Fernbedienung Typ KR 357 55 (35,- DM).

• Net weight (2.2 lb = 1 kg)
• 40 kg / 88 lb 1.7 oz (88.106 lb)

• Price in first year of sale
• 1,118.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58

• Mentioned in
• Handbuch RFP 1957 (Jg. 1957/58 S.188)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
