• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1958/1959

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 100892

• • Brand: Deutsche Philips-Ges.

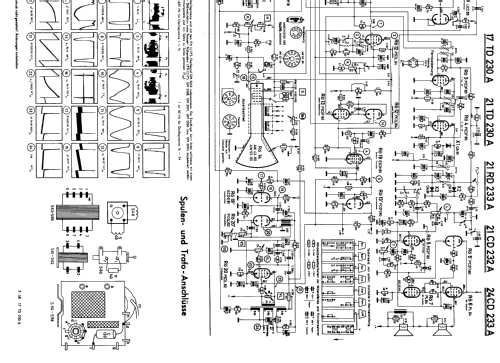

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 23

• Valves / Tubes
• PCC88 PCF80 EF85 EF80 EF80 EF80 PCL84 PCF80 ECH81 PCL82 PCF80 PL36 DY86 PY81 PCF80 UCC85 PCF80 PCF80 PL84 PL84 UY82 UY82 AW53-80

• Number of Transistors

• Semiconductors
• OA70 OA91

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Leonardo L 21TD230A - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 630 x 620 x 495 mm / 24.8 x 24.4 x 19.5 inch

• Notes

• Nur VHF mit 12 Kanal Cascode Trommelwähler KR 361 52.

  Fernbedienung typ KR 357 55

• Net weight (2.2 lb = 1 kg)
• 40 kg / 88 lb 1.7 oz (88.106 lb)

• Price in first year of sale
• 1,128.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
