Breitband-Millivoltmeter GM6012
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1960 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 80539
Radio Constructeur et Dépanneur janvier 1961
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Number of Transistors
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Breitband-Millivoltmeter GM6012 - Philips; Eindhoven tubes
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 35 x 27 x 21 mm / 1.4 x 1.1 x 0.8 inch
- Notes
-

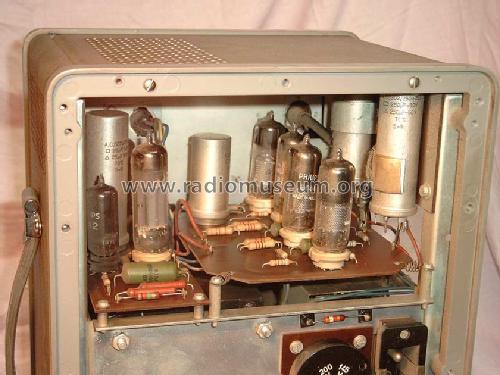

12 Messbereiche 1mV bis 300V, -80dB bis +52dB. Frequenzbereich 2Hz-1MHz bei ±5% Fehlanzeige.
19" Rackversion GM 6012 R für 1070 DM.
An Stelle der E80CF wird eine E88CC genannt (Katalog 1966). Unterschied im Baujahr??System documentation on page 32 specifies the GR1-GR4 as OA73
- Net weight (2.2 lb = 1 kg)
- 10.5 kg / 23 lb 2 oz (23.128 lb)
- Price in first year of sale
- 980.00 DM
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- - - Manufacturers Literature (Philips-Katalog 1966)
- Author
- Model page created by Bernd Pötzsch. See "Data change" for further contributors.
- Other Models
-
Here you find 5248 models, 4392 with images and 3450 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
Collections
The model Breitband-Millivoltmeter is part of the collections of the following members.
Forum contributions about this model: Philips; Eindhoven: Breitband-Millivoltmeter GM6012
Threads: 1 | Posts: 1
Note the different value dB to Voltage on the range switch.
I Have a GM6012 with Zero dB at 1V range (-60dB at 1mV)
Skale Zero-dB is possitioned at the 300 range (70,7)
dB skale range is then -10..+20dB
and
GM6012/03 with Zero dB at 3V range (-70dB at 1mV)
Skale Zero-dB is possitioned at the 100 range (70,7)
dB skale range is then -20...+10dB
The different pictures are already in the model-page, only not mentioned /03
and the difference.
Regards,
Maurice Hamm
Maurice Hamm, 12.Oct.16
