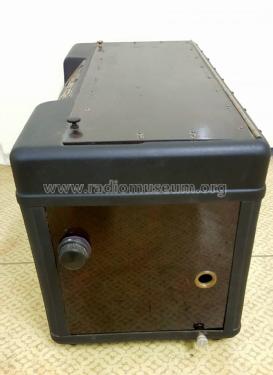

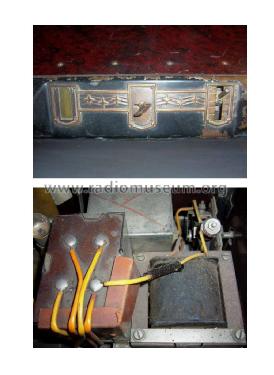

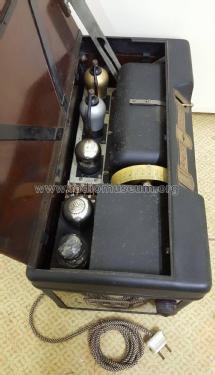

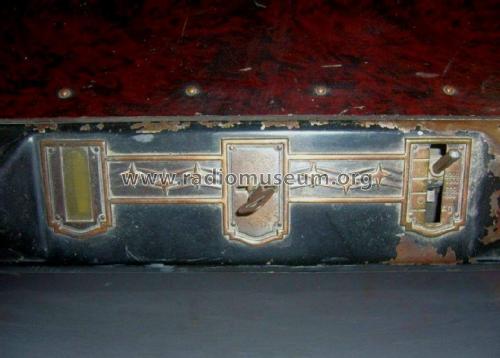

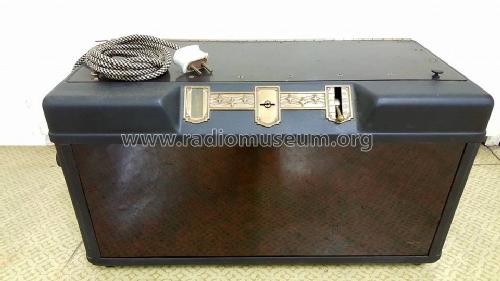

Luxus 2511

• Country
• Hungary

• Manufacturer / Brand
• Philips Hungary, Rádió és Villamossági Rt., Magyar Philips; Budapest

• Year
• 1928–1930

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 271205

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

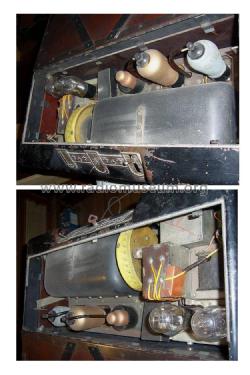

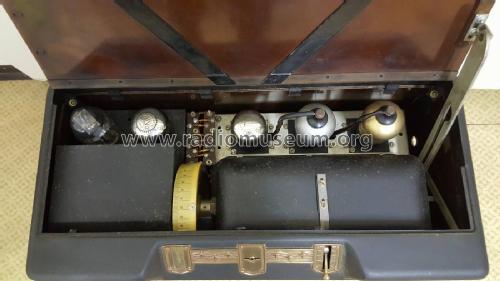

• Valves / Tubes
• E442 E442 E415 or E424 C443 506

• Main principle
• TRF without regeneration; 2 AF stage(s)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Various materials

• from Radiomuseum.org
• Model: Luxus 2511 - Philips Hungary, Rádió és

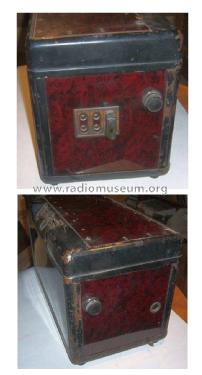

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 550 x 290 x 240 mm / 21.7 x 11.4 x 9.4 inch

• Price in first year of sale
• 978.00 Pengő

• Literature/Schematics (2)
• http://www.radiohistoria.hu/Oldradio/mainhu.nsf/wcatalid/0000053

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
