- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1993
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 290925

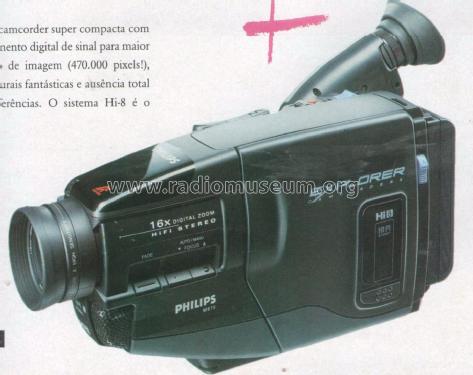

Foto Catalogo Philips
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Details
- Video-Taperecorder/-Player
- Power type and voltage
- Storage and/or dry batteries / 6 Volt
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: M 870 - Philips; Eindhoven tubes
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 110 x 90 x 200 mm / 4.3 x 3.5 x 7.9 inch
- Notes
-
Camcorder HI 8 system, ccd 1/3" 470000 pixels, sensitivity 2 lux, zoom 1,5x, digital titrador, autofocus, aperture F 1,4, digital zoom 16x, macro, 2 heads, movable head erasing, stereo microphone, osd, with balance, horizontal resolution lines »400, data-time recording, auto focus, repetition of images, HI FI stereo sound, inputs and outputs,
- Net weight (2.2 lb = 1 kg)
- 0.730 kg / 1 lb 9.7 oz (1.608 lb)
- Mentioned in
- - - Manufacturers Literature (Euro Magazine 93/94 Philips, page57)
- Author
- Model page created by Manuel Albano Neves. See "Data change" for further contributors.
