• Model: Magneto-dynamic Pickup 22GP407 - Philips; Eindhoven tubes

• Shape
• Chassis only or for «building in»

• Notes

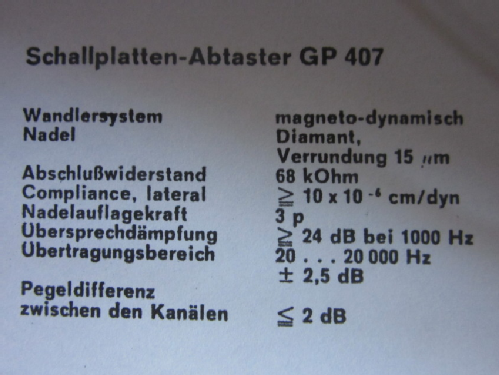

• Stereophonic magneto-dynamic pick-up cartridge, with 5-pin connector, for microgroove records.

  Terminating resistance: 68 kΩ
  Horizontal compliance: ≥ 10 x 10-6 cm/dyne
  Vertical stylus pressure: 3 gr
  Needle pressure: 2 - 4 gr
  Channel separation: ≥ 24 dB at 1000 Hz
  Frequency response: 20 ... 20000 Hz ± 2 dB
  Channel balance: ≤ 2 dB

  Pick-up for 78 rpm records with otherwise identical data, see GP409.
  In June 1968, the type AG3407 was recoded to 22GP407.
  There is no direct replacement for this cartrigde type (in 1971).

  Replacement stylus type:
  4822 251 30007, diamond, micro and stereo 15 µ, color marking: blue (replaces white)
