Malibu Transistor 7 PS6 /01
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 293910

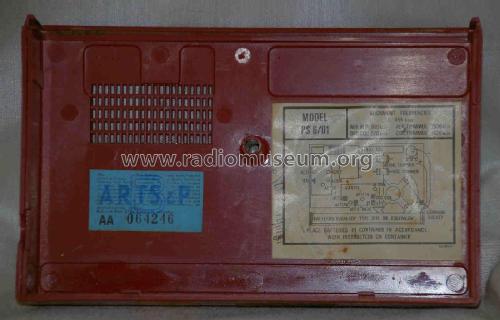

The model and serial numbers.
The dial, not yet cleaned.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Malibu Transistor 7 PS6 /01 - Philips Australia
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 6.75 x 4.25 x 1.75 inch / 171 x 108 x 44 mm
- Notes
-
Updated version of Malibu PS6. Uses an improved audio module type UA411.
Comes with a carrying case with shoulder strap.
There are two different RF/IF modules (UF302 and UF312) and two different AF modules (UA403 and UA411) referenced in the Service Notes as well as a change in the speaker.
The UA411 circuit in the Service Notes dated July 1967 is shown as using a BC108 and the listing on RMorg for the UA411 shows a BC148.
Caution is advised as the modules could be changed in a prior service intervention.
The speaker in radio S/N PS6.4608 with a is an Hi-Flux 2.75JB/15, probable 15 ohm impedence as against 33 ohm for the MSP unit.This radio has the earlier AF module (UA403).
The weight is without batteries or carry case.
- Net weight (2.2 lb = 1 kg)
- 0.292 kg / 0 lb 10.3 oz (0.643 lb)
- Price in first year of sale
- 49.95 AUS $
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- - - Manufacturers Literature (Philips Service Notes Supplementary Sheet, October 1966.)
- Literature/Schematics (2)
- J.R. Publications Transistor Radio Service Handbook (Group C5, 1968, Page P45.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
- Other Models
-
Here you find 910 models, 708 with images and 422 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips Australia
Collections
The model Malibu Transistor 7 is part of the collections of the following members.
Forum contributions about this model: Philips Australia: Malibu Transistor 7 PS6 /01
Threads: 1 | Posts: 2
The Philips Service Notes Supplementary Sheets (uploaded to the Schematic data base) indicates that the PS6 Service Notes for the PS6 were issued in October 1965 and for the PS6/01 in October 1966. One of the Supplementary Sheets uploaded covers a new Audio Module with a mix of Germanium and Silicon transistors. That sheet was issued in July 1967.
The sequence thus appears:
October 1965 PS6
October 1966 PS6/01 with Audio Module UA403
July 1967 PS6/01 with a BC108 in the Audio Module UA411 (TR101 = BC108)
There is also a change referred to in the speaker, to an MSP 2.75JB/33 This is referenced in the July 1967 Service Sheet as "Independent of the Module Change......"
Later, but undated, the RF/IF module changes from an UF302 to UF312
Brian Wilson, 31.Jan.24
