Matine 658U
Philips Radio A/S; København
- Country
- Denmark
- Manufacturer / Brand
- Philips Radio A/S; København
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 139703
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 441 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110; 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Matine 658U - Philips Radio A/S; København
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 400 x 275 x 190 mm / 15.7 x 10.8 x 7.5 inch
- Notes
- Für jede Netzspannung ist separater Brückenstecker erforderlich.
- Net weight (2.2 lb = 1 kg)
- 6.1 kg / 13 lb 7 oz (13.436 lb)
- Price in first year of sale
- 375.00 dKr.
- Source of data
- - - Data from my own collection
- Literature/Schematics (1)
- - - Manufacturers Literature (Philips Service Meddelelser Bind 3 1942 - 1947)
- Author
- Model page created by Jürgen Bauch. See "Data change" for further contributors.
- Other Models
-
Here you find 104 models, 102 with images and 56 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips Radio A/S; København
Forum contributions about this model: Philips Radio A/S; K: Matine 658U
Threads: 1 | Posts: 2
Ich habe heute ein Philips der Bezeichnung 658 U erhalten. Dieses scheint aber als Hersteller Land Dänemark zu haben. Es sieht auch sonst anders aus .Röhrenbestückung UCH4 UCH4 UBL1 UY1(N).
Handelt es sich hier um eine neues Modell ?
Jürgen Bauch
Attachments
- 658U Matine (84 KB)
- 658U-1 (79 KB)
- 658U-3 (64 KB)
- 658U-4 (80 KB)

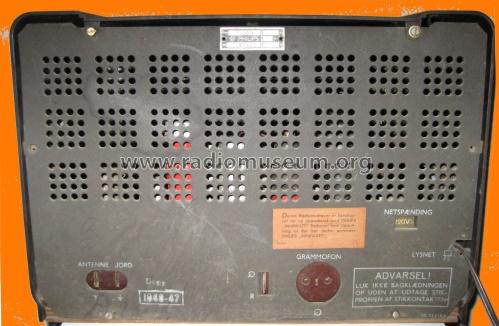

- Rueckwand (83 KB)
Jürgen Bauch, 11.Nov.08
