MCM726/12
Philips 飞利浦; China
- Country
- People's Republic of China
- Manufacturer / Brand
- Philips 飞利浦; China
- Year
- 2010
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 219436
Manual Instruciones

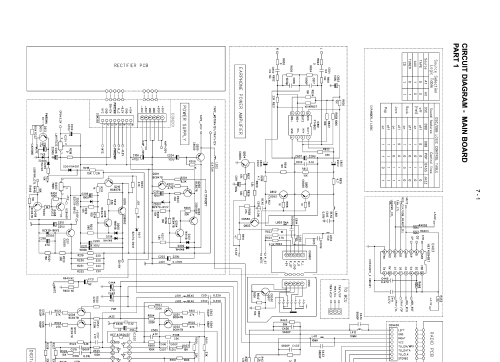

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Cassette-Recorder or -Player; Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: MCM726/12 - Philips 飞利浦; China
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 175 x 252 x 215 mm / 6.9 x 9.9 x 8.5 inch
- Notes
- - Ouput Power: 2 x 50 W RMS - Cassette recorder & Player - CD Player and MP3 - Imput USB ( MP3, WMA ) - Turner FM, MW and LW - Imput AUX
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Author
- Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
