Merkur 493 B4D93A dunkel
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1959/1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 22144
-
- Brand: Deutsche Philips-Ges.
Sammlung
Sammlung
Aus Prospekt 1960
eBay: daniel.02; 6593013282
Sammlung
Sammlung
Sammlung
Sammlung

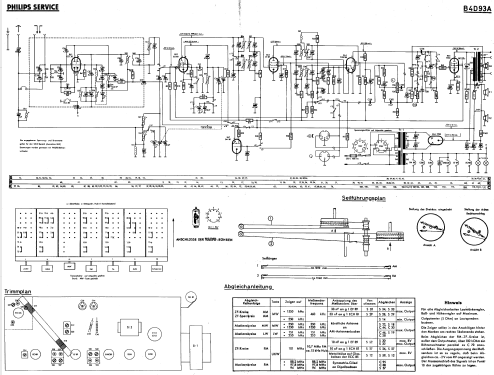

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 125/220 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Merkur 493 B4D93A [dunkel] - Philips Radios - Deutschland
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 600 x 350 x 225 mm / 23.6 x 13.8 x 8.9 inch
- Notes
- .
- Net weight (2.2 lb = 1 kg)
- 7.8 kg / 17 lb 2.9 oz (17.181 lb)
- Price in first year of sale
- 279.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1959/60
