• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1957–1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 21588

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes

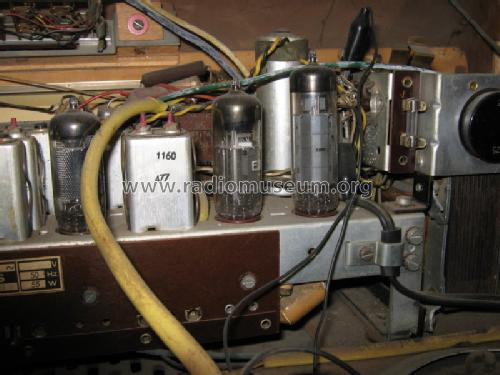

• ECC85 ECH81 EF89 EABC80 EM80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

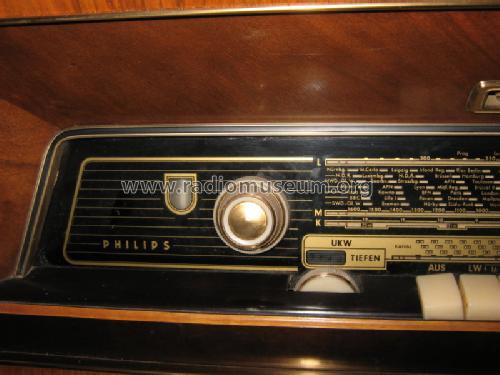

• Model: Merkur Tisch 574 FD574A - Philips Radios - Deutschland

• Shape
• Console, Highboy (legs > 50 %).

• Dimensions (WHD)
• 700 x 650 x 500 mm / 27.6 x 25.6 x 19.7 inch

• Notes

• Technische Daten wie Merkur 473, jedoch Tischform zum Aufstellen eines Fernsehempfängers.

  Für den Nachbau fehlender Füsse die Maße : Länge 420mm. Durchmesser oben 40mm, unten 18mm.

• Net weight (2.2 lb = 1 kg)
• 17 kg / 37 lb 7.1 oz (37.445 lb)

• Price in first year of sale
• 475.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59
