• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1965/1966

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 111753

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• PC900 PCF801 EF183 EF184 PCL84 PCH200 PCH200 PCF802 PL500 PY88 DY86 PF86 PCL85 EF184 PCL86 A65-11W

• Number of Transistors
• 3

• Semiconductors
• AF139 AF139 AF121 OA70 OA81 OA91 BA100 BY100

• Main principle
• Superheterodyne (common); ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

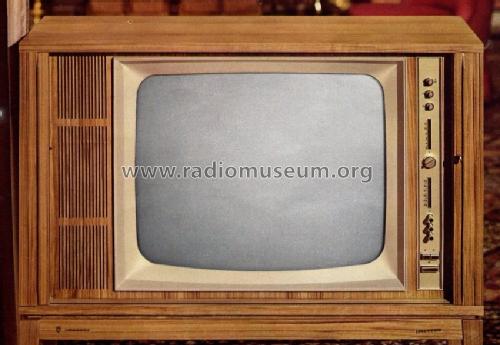

• Model: Michelangelo Vitrine 25CD401A /00 /06 Ch= D5 [65 cm] - Philips Radios - Deutschland

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 950 x 910 x 450 mm / 37.4 x 35.8 x 17.7 inch

• Notes

• Ausführungen: -00  dunkel, -06  hell
  - UHF Kanalwähler mit Transistoren, Typ A3 687 70 (AT 6380) HA 362 58
  - VHF Kanalwähler mit Röhren, Typ 3112 108 54070 (NT 5703)
  - UHF Kanalwähler mit Drucktastenbedienung
  - Fernbedienung Typ 65 NT1170 oder Typ 66 NT1171 oder Typ 65 Luxus NT 1172

• Net weight (2.2 lb = 1 kg)
• 45 kg / 99 lb 1.9 oz (99.119 lb)

• Source of data
• Handbuch VDRG 1965/1966

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
