Micro HiFi System MC230 /21M /22 /25 /30
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 2003
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 293038
Modellbezeichnung abklären
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- CD-Player, -Writer, MD, MOD (audio)
- Power type and voltage
- Alternating Current supply (AC) / 50-60Hz, 120-240 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 10 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Micro HiFi System MC230 /21M /22 /25 /30 - Philips; Eindhoven tubes
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 250 x 245 x 96 mm / 9.8 x 9.6 x 3.8 inch
- Notes
-
The Philips Micro HiFi System MC230 consists of a 2-band AM/FM RDS radio with amplifier, a CD-Player and two detachable loudspeakers.
Executions:
- /21 120/240 VAC ± 15% switchable
- /22 /25 230 VAC ± 10%
- /30 240 VAV ± 10%
For further details regarding AM/FM reception refer to the data sheet.
Most probably Made in China.
- Mentioned in

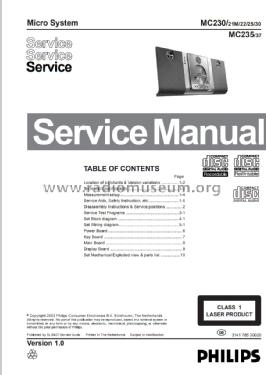

- -- Original-techn. papers.
