• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1965 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 282625

• • Brand: Deutsche Philips-Ges.

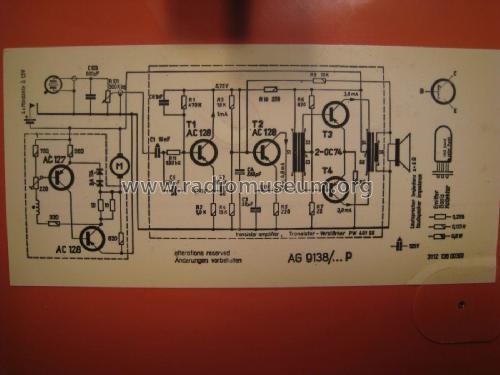

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AC127 AC128 AC128 AC128 OC74 OC74

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

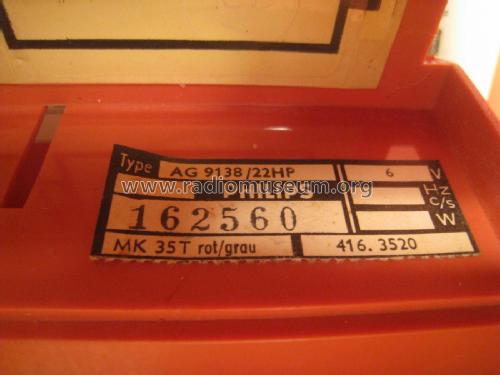

• Model: Mignon-Koffer MK35T AG9138 /22HP - Philips Radios - Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 285 x 265 x 125 mm / 11.2 x 10.4 x 4.9 inch

• Notes

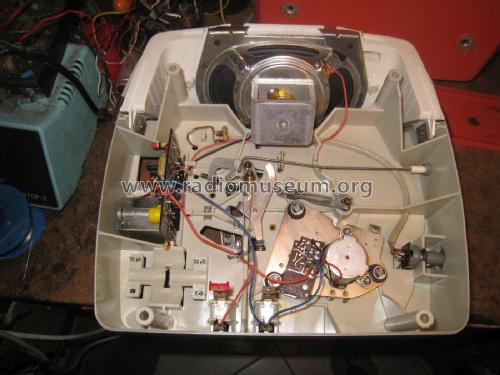

• Netzunabhängiger Phonoautomat zum Abspielen von M-45 Schallplatten. Motor mit Transistorsteuerung.

  Siehe auch Mignon-Koffer MK35 AG9138 mit Fliehkraftregelung.

• Net weight (2.2 lb = 1 kg)
• 2.050 kg / 4 lb 8.2 oz (4.515 lb)

• Author
• Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
