- Country
- Spain
- Manufacturer / Brand
- Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona
- Year
- 1973 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 357270

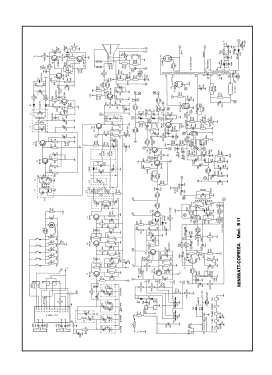

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- 17
- Semiconductors
- BF196 BF197 BF197 BF194 BF178 BF194 BC158 BC158 BC158 BC158 BC157 BF194 BF194 BC158 BC158 AC187 AC188 TAA550 AA119 BA148 BY127 OA90
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 125; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Miniwatt B11 - Philips Ibérica, COPRESA,
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Miniwatt, Copresa (Philips Ibérica), B11
TV B/N 19" con sintonizador VFF/UHF Copresa ELC2000S
- Mentioned in
- Esquemas de Receptores de TV nº 2, Alfredo Borqué, Paraninfo, 1975
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
