• Country
• Spain

• Manufacturer / Brand
• Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

• Year
• 1966 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 340099

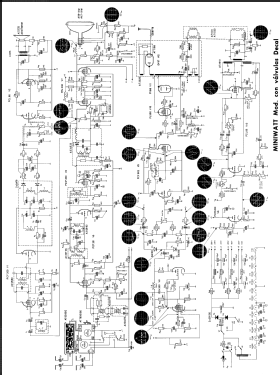

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• PC900 PCF801 PCF201 PCF200 PFL200 PCH200 PCF802 PL500 PY88 DY87 PCL85 PCF200 PCL86 A59-11W

• Number of Transistors
• 2

• Semiconductors
• AF139 AF139 BA100 BY100 OA70 OA79

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.1 inch = 15.5 cm

• from Radiomuseum.org
• Model: Miniwatt con válvulas Decal 23" - Philips Ibérica, COPRESA,

• Shape
• Tablemodel, low profile (big size).

• Notes

• Philips Ibérica, S.A.E. (COPRESA), Miniwatt 23" con válvulas Decal

  TV B/N 23"

  • Selector rotativo de VHF Copresa AT-7650 /90 Memomatic
  • Sintonizador de UHF a Transistores Copresa AT-6380E
  • Altavoz extraplano bicono tipo AD3729-RM



• Mentioned in
• Esquemario TV REDE, Tomo V, 1969

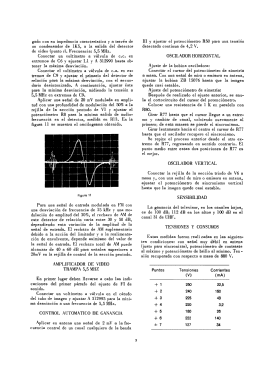

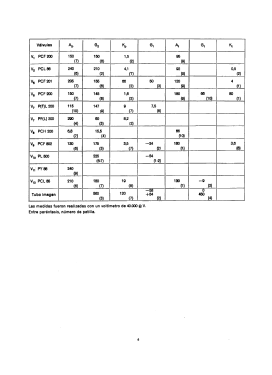

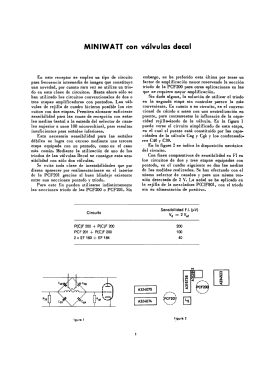

• Literature/Schematics (1)
• -- Schematic
