• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1935 ?

• Category
• Kit (Parts plus instruction) or building instructions only

• Radiomuseum.org ID
• 333560

• • Brand: Deutsche Philips-Ges.

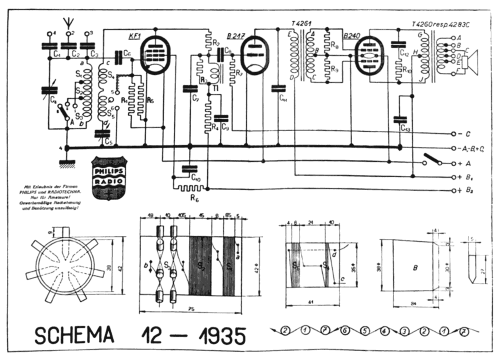

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• KF1 B217 B240

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 2 & 150 & -4.5 Volt

• from Radiomuseum.org
• Model: Miniwatt Schema 12-1935 - Philips Radios - Deutschland

• Notes

• Wellenbereich 200 - 2000 m. Detektor mit HF Pentode und Klasse B1 Sparschaltung.
