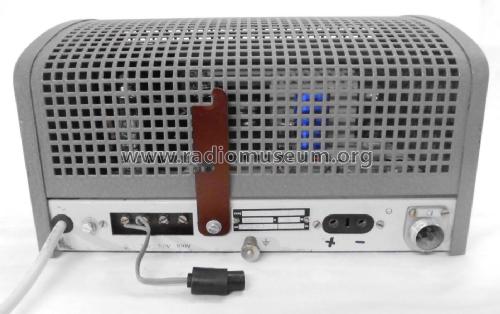

Mischpultverstärker EL6401/02

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1954 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 70599

• • Brand: Deutsche Philips-Ges.

• Picture
• Schematics

Previous Next

Previous Next

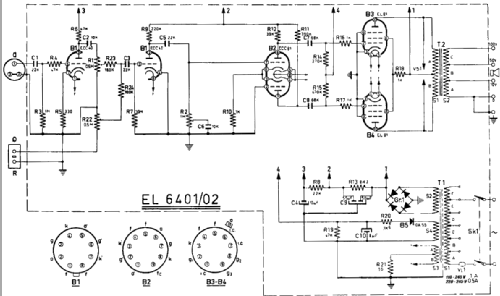

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECC40 ECC81 EL81 EL81

• Number of Transistors

• Semiconductors
• OA55 B250C100

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 12 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Mischpultverstärker EL6401/02 - Philips Radios - Deutschland

• Dimensions (WHD)
• 290 x 165 x 210 mm / 11.4 x 6.5 x 8.3 inch

• Net weight (2.2 lb = 1 kg)
• 5.6 kg / 12 lb 5.4 oz (12.335 lb)

• Price in first year of sale
• 370.00 DM

• External source of data
• Gerät aus eigener Sammlung

• Author
• Model page created by Hilmer Grunert. See "Data change" for further contributors.
