• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1971/1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28626

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• BF194 BF195 BF194 AC187 AC188 TBA570

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 4 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 0.4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

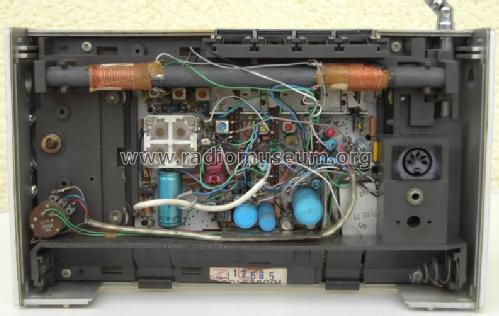

• Model: Mistral 50IC320 [/01 /02] - Philips Radios - Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 230 x 140 x 60 mm / 9.1 x 5.5 x 2.4 inch

• Notes
• ICs: 1.
  ZF bei Modell 50IC320/01 = 460 kHz,
  ZF bei Modell 50IC320/02 = 452 kHz.

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1971/1972

• Mentioned in
• -- Original-techn. papers.
