• Country
• Singapore

• Manufacturer / Brand
• Philips, Singapore

• Year
• 1985

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 195686

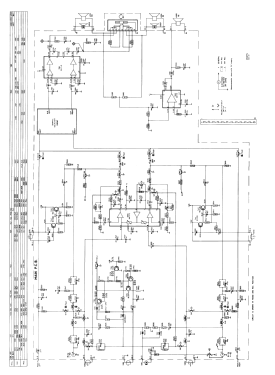

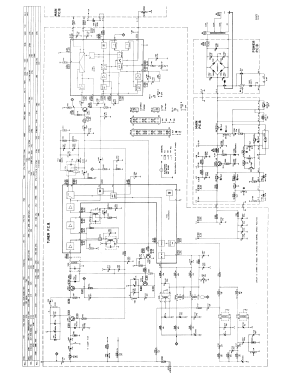

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors
• BF494 1402D 1402E BC337 BC549 BC558 BC556 BC337 BC559 1N4148 BA315 1N4002 1N5171 BZX79 TEA5570 AN7411 AN7312 AN7148 AN7131

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 120; 220; 240 / 6 x1.5 Volt

• Loudspeaker
• 5 Loudspeakers

• Power out
• 5 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

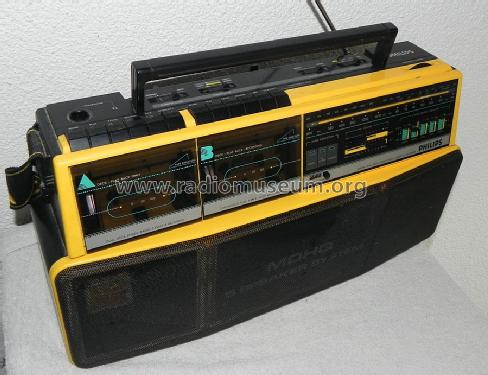

• Model: Moving Sound D-8304 - Philips, Singapore

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• 2 eingebaute Kassettengeräte, Überspielmöglichkeit, 5-Kanal Graphic Equalizer 100 Hz, 300 Hz, 1 KHz, 4 KHz, 10 KHz, +/- 10 dB. 5 Speaker- system.

  Transistoren und Dioden nur einmal pro Typ gelistet.

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
