• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1971

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 186789

• • Brand: Deutsche Philips-Ges.

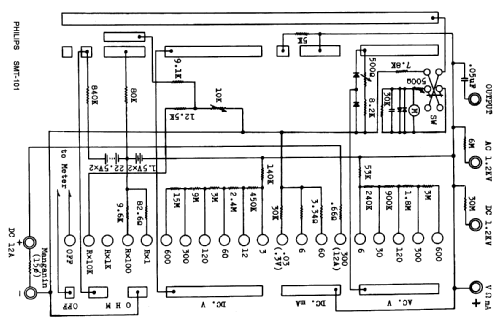

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / 2 x 1.5 & 22.5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

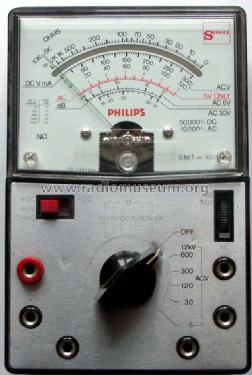

• Model: Multitester SMT-101 - Philips Radios - Deutschland

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 107 x 46 x 163 mm / 4.2 x 1.8 x 6.4 inch

• Notes
• Philips Multitester SMT-101;
  Messbereiche:
  DC V 0.3, 3, 12, 60, 120, 300, 600, 1200 V @ 50 kohm/V
  AC V 6, 30, 120, 300, 600, 1200 @ 10 kohm/V
  DC A 6, 60, 300 mA; 12 A.
  Ohm: 10 k, 1 M, 10 M, 100 Mohm.
  Zubehör: Hochspannungs-Tastkopf HP-300 (bis 30 kV).

• Net weight (2.2 lb = 1 kg)
• 0.680 kg / 1 lb 8 oz (1.498 lb)

• Price in first year of sale
• 148.00 DM

• Source of data
• - - Manufacturers Literature

• Mentioned in
• Funk-Technik (FT) (20/1971, S. 778 / Neuvorstellung, Messebericht Berlin)

• Author
• Model page created by Wolfgang Steeger. See "Data change" for further contributors.
