• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1968/1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6951

• • Brand: Deutsche Philips-Ges.

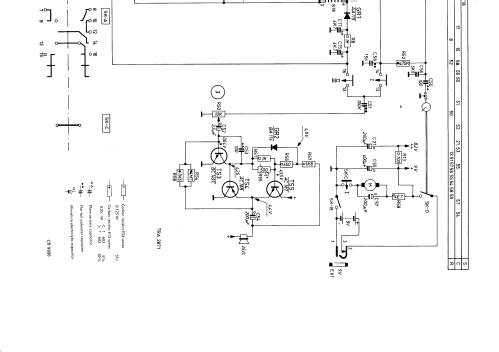

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• BF194 BF194 BC149C AC188 AC187 AA119 AA119 BA114

• Main principle

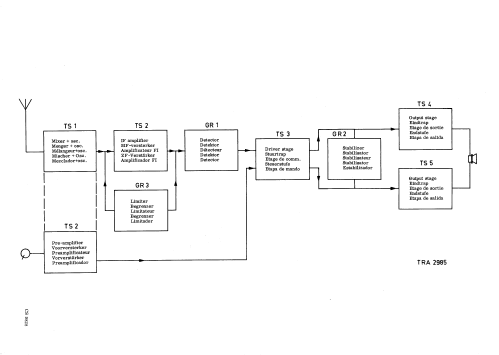

• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Details
• Record Player (not changer)

• Power type and voltage
• Batteries / addl. power jack / 6 × 1,5 / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Power out
• 0.35 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Musette 22RH100 /00L /00X - Philips Radios - Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 275 x 70 x 230 mm / 10.8 x 2.8 x 9.1 inch

• Notes
• • AM-Radio mit eingebauter Ferritantenne:
    • LW: 150 - 260 kHz.
    • MW: 522 - 1622 kHz.
  • Verstärker: 1 x 0.35 Watt (Effektivwert) in 25 Ohm.
  • Plattenspieler mit Kristallsystem für 33/45 UpM, durch abnehmbaren Deckel bei Nichtgebrauch geschützt.
  • Netzbetrieb mit zusätzlichem Netzteil (9 V) möglich.

  ---

  • AM radio with built-in ferroceptor:
    • LW: 150 - 260 kHz.
    • BC: 522 - 1622 kHz.
  • Amplifier: 1 x 0.35 Watt RMS in 25 Ohm.
  • Turntable with 2 speed (33; 45 rpm) and xtal pick-up.
  • Can be powered by batteries or external 9 volt mains adapter.

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• Source of data
• Handbuch VDRG 1968/1969 / Radiokatalog Band 1, Ernst Erb

• Literature/Schematics (1)

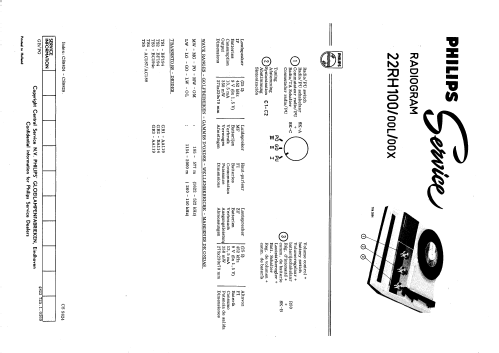

• -- Original-techn. papers.
