• Country
• Australia

• Manufacturer / Brand
• Philips Australia

• Year
• 1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 220456

• Number of Transistors
• 16

• Semiconductors
• BF194 BF195 BF195 BC179 BC179 BC108 BC108 BC178 BC178 AC187 AC187 AD161 AD162 AD161 AD162 AC187 AA119 AA119 BY126 BY126 BZY88

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 5 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 240-250 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 12 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Music Studio 02RF713 - Philips Australia

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 23 x 24.5 x 16.5 inch / 584 x 622 x 419 mm

• Notes

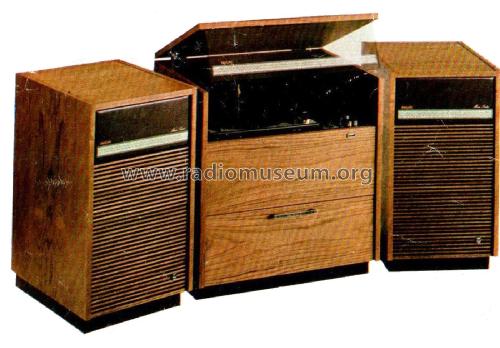

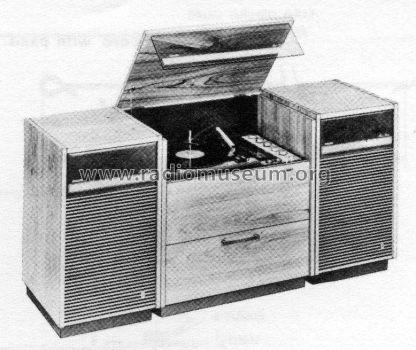

• Stereo radiogram with separate 2 way speakers.

  Speaker dimensions: 13½" x 24½" x 16½".

• Price in first year of sale
• 349.00 AUS $

• Literature/Schematics (1)
• - - Manufacturers Literature (Philips Service Manual.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
