• Country
• Australia

• Manufacturer / Brand
• Philips Australia

• Year
• 1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 222604

• Number of Transistors
• 15

• Semiconductors
• BF194 BF195 BF195 BC109 BC109 AC126 AC126 BC108 BC108 AC128 AC128 AD161 AD161 AD162 AD162 AA119 AA119 BY126 BY126

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 5 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 220-250 Volt

• Loudspeaker
• 6 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

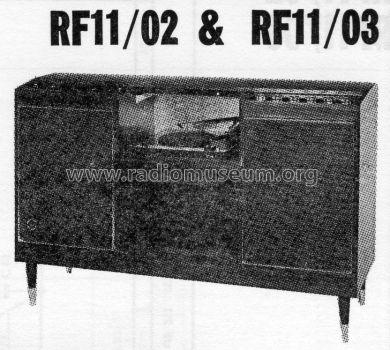

• Model: Music Studio RF11/02 - Philips Australia

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• Stereo Radiogram. The record changer is a BSR type UA15/SS5H. The speakers used are two 12" woofers, two 5" mid-range and two 4" tweeters.

• Source of data
• - - Manufacturers Literature

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
