Musiktruhe FX652A/90

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1956 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 219245

• Picture

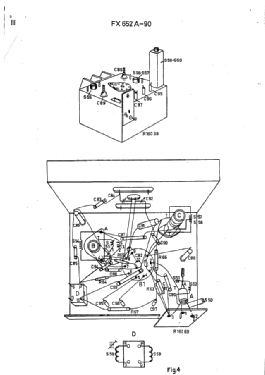

• Schematics

Previous Next

Previous Next

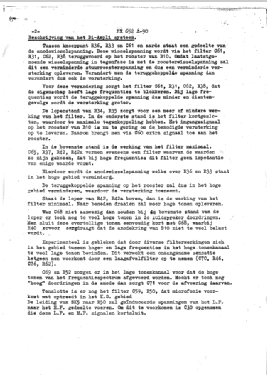

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• ECC85 ECH81 EF89 EF85 EM80 EABC80 ECC83 EL84 EL84 EZ80 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 145; 160; 180; 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 15 cm = 5.9 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Musiktruhe FX652A/90 - Philips; Eindhoven tubes

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 900 x 790 x 385 mm / 35.4 x 31.1 x 15.2 inch

• Author
• Model page created by Raoul Tholl. See "Data change" for further contributors.

• Other Models

• Here you find 5246 models, 4389 with images and 3447 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
