- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1972 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 286190
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Storage and/or dry batteries / 5 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
- Power out
- 0.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: N2211 /00 - Philips; Eindhoven tubes
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 205 x 130 x 50 mm / 8.1 x 5.1 x 2 inch
- Notes
-

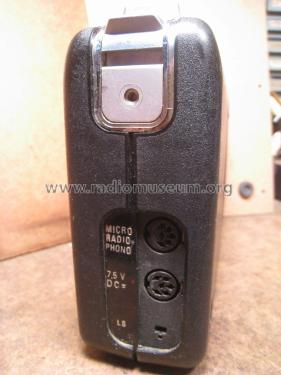

Philips N2 211/00 - Automatic Recording Cassette - tasti play/stop/ff.ww/rew/rec - controllo volume - microfono electret incorporato - maniglia di trasporto - ingresso micro/radio/phono - presa per alimentazione esterna 7,5 volt - uscita per altoparlante esterno -
Made in Holland
- Net weight (2.2 lb = 1 kg)
- 0.950 kg / 2 lb 1.5 oz (2.093 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
