• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1976/1977

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 134688

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110-127; 220-240 /C: 6×1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 2.25 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

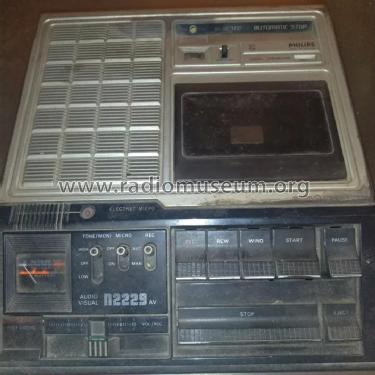

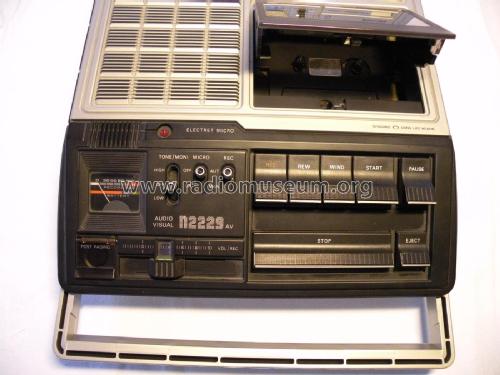

• Model: N2229AV Automatic - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 250 x 76 x 275 mm / 9.8 x 3 x 10.8 inch

• Notes
• Philips Cassetten-Recorder N2229AV Automatic.
  Eingebautes Electret-Mikrofon; eingebauter Impulskopf für Dia- und Filmvertonung; Anschluss für Dia-Steuergerät N6401; Frequenzbereich: 60···12000 Hz mit CrO₂-Band.

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Source of data
• Handbuch VDRG 1976/1977

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
